• Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2
  • Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2
1 2

ASROCK

Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2

Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2

£59.99 GBP
£59.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

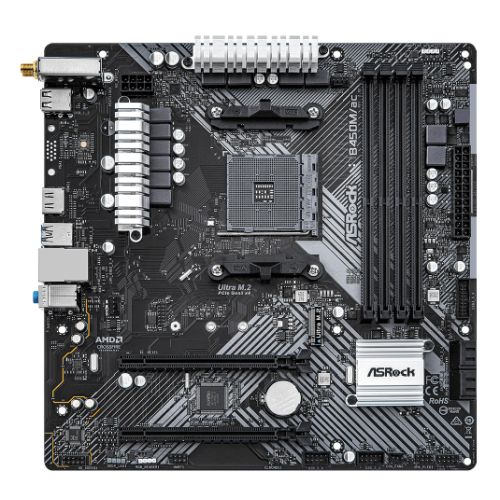

ASRock B450M ac R2.0

Micro ATX AM4 board with clean power delivery, solid wireless, and a full feature set. Supports Ryzen two thousand, three thousand, four thousand G series, five thousand and five thousand G series desktop processors. Built for daily gaming rigs and creator PCs that want compact size without losing connectivity.

AM4 socket B450 chipset DDR4 up to 3200 OC Ultra M.2 PCIe Gen3 x4 Intel dual band ac Wi Fi Realtek gigabit LAN

Ten power phase design

Sturdy components and smooth delivery for the CPU with headroom for tuning.

Two ounce copper PCB

Thicker copper inner layers aim for lower temps and better efficiency.

Polychrome RGB

Onboard RGB and addressable header to sync lighting across supported gear.

Ultra M.2

PCIe Gen3 x4 slot supports up to thirty two Gb per s for fast NVMe storage.

Dual band ac Wi Fi

Intel module with Bluetooth four point two for quick setup and reliable links.

Protection suite

Full Spike Protection plus high density glass fabric PCB to help resist shorts.

Specifications ▾
Form factorMicro ATX
SocketAMD AM4
ChipsetAMD B450
CPU supportRyzen two thousand, three thousand, four thousand G series, five thousand and five thousand G series
MemoryFour DIMM, dual channel, DDR4 up to 3200 OC, max 128 GB, XMP support
Graphics outputHDMI up to 4K 60 Hz with Ryzen APU
PCIe slotsOne PCIe 3.0 x16, one PCIe 2.0 x16
Multi GPUAMD Quad CrossFireX
StorageFour SATA III, one Ultra M.2 2242 to 2280 PCIe Gen3 x4
RAIDSATA RAID 0, 1, 10
USB totalSix USB 3.2 Gen1, plus USB 2.0 headers
AudioRealtek ALC892 or ALC897, 7.1 channel HD audio
LANRealtek gigabit LAN
WirelessIntel 802.11ac dual band with Bluetooth 4.2
RGBOne RGB header, one addressable RGB header, Polychrome Sync
PCB finishSapphire black with two ounce copper
Ultra M.2 PCIe Gen3 x4 HDMI 4K 60 Hz Full Spike Protection Live Update and App Shop
I O and headers ▾
Rear panel
  • Two Wi Fi antenna connectors
  • One HDMI
  • Four USB 3.2 Gen1 Type A
  • Two USB 2.0
  • One RJ45 gigabit LAN
  • HD audio jacks
Internal connectors
  • One 24 pin ATX and one 8 pin 12 V
  • One CPU fan, one chassis fan, one chassis or pump fan
  • One front panel audio
  • Two USB 2.0 headers, one USB 3.2 Gen1 header
  • One RGB header, one addressable RGB header, one AMD fan LED
  • One chassis intrusion, one power LED and speaker
What is in the box ▾
  • Motherboard
  • I O shield
  • Two SATA data cables
  • Two ASRock Wi Fi antennas
  • M.2 screw
  • Quick install guide and support CD
Quick info ▾
Package typeRetail
WarrantyTwo year replacement
USB on rearFour USB 3.2 Gen1, two USB 2.0
USB front headersTwo USB 2.0, one USB 3.2 Gen1
Audio codecALC892 or ALC897
Max memoryOne hundred and twenty eight GB
View full details
