MS-iCraft B860M CROSS – MAXSUN Gaming Motherboard | Destello Tech

MS-iCraft B860M CROSS is part of MAXSUN’s cutting-edge motherboard lineup, now officially available in the UK from Destello Tech. Whether you’re gaming, streaming, or creating, this board delivers exceptional reliability and style. Featuring the powerful B860 chipset, it ensures cutting-edge performance.

Each board comes with:

• Genuine MAXSUN engineering
• UK-based support and fast delivery
• Hand-checked quality assurance by Destello Tech

Upgrade your system with confidence — explore MAXSUN motherboards today.

Model

MS-iCraft B860M CROSS

Motherboard Size

Micro-ATX (245 x 245mm)

CPU Socket

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Chipset

Intel® B860 chipset

Memory

• 4 x DIMM DDR5 memory slots, up to 192GB capacity
• Dual-channel memory architecture support
• Memory XMP support
• Memory frequency support: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz

Display

• 1 x HDMI™ 2.0 port, up to 4K@60Hz resolution
• 1 x DisplayPort 1.4 port, up to 4K@120Hz resolution

Expansion Slots

• 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode)
• 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)

Audio

Integrated REALTEK ALC897 audio chip

Network

• Integrated REALTEK RTL8126 5Gb Ethernet chip
• Onboard Intel® AX211 wireless network card, supports Wi-Fi 6E and Bluetooth 5.3

Storage

• 1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 lengths
• 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 lengths
• 4 x SATA 6Gb/s connectors

USB Ports

• Onboard USB:
  • 1 x USB-C® 20G front connector
  • 1 x USB 5G 19-pin header, supports 2 additional USB 5G ports
  • 1 x USB 2.0 9-pin header, supports 2 additional USB 2.0 ports
  • 1 x USB 2.0 4-pin header, supports 1 additional USB 2.0 port

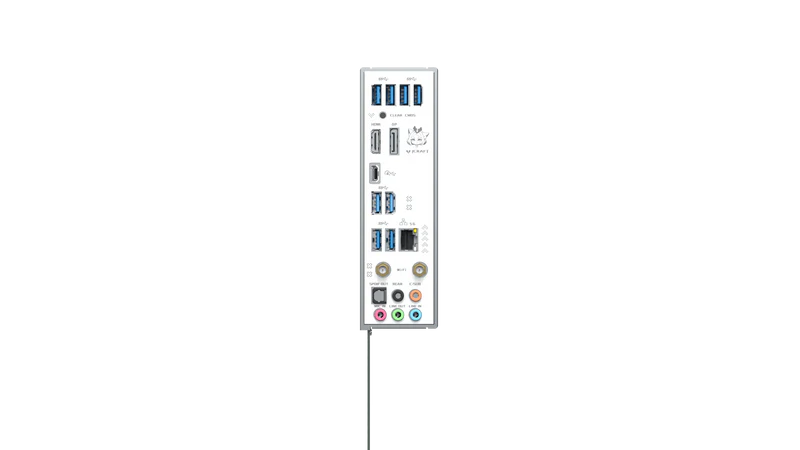

• Rear USB:
  • 1 x USB4® 40G port (up to 15W power output)
  • 8 x USB 10G Type-A ports

Other Features

• 1 x 24-pin ATX power connector
• 2 x 8-pin +12V power connectors
• 2 x 3-pin ARGB headers
• 1 x 4-pin NRGB header
• 1 x COM port header
• 1 x CLR CMOS reset header
• 1 x 4-pin CPU fan header
• 1 x 4-pin PUMP water pump header (supports DC speed control)
• 4 x 4-pin chassis fan headers
