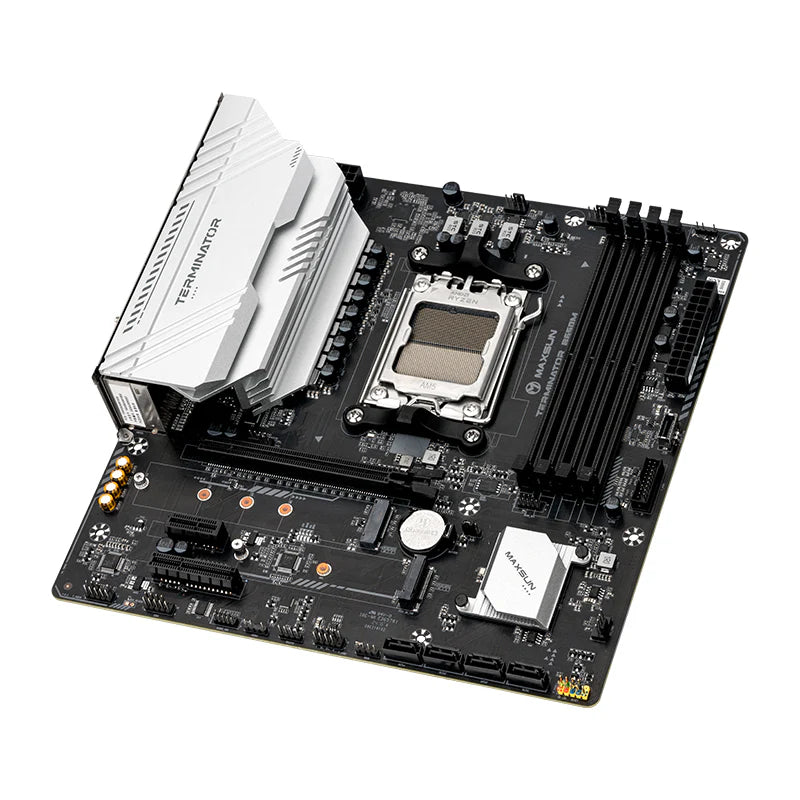

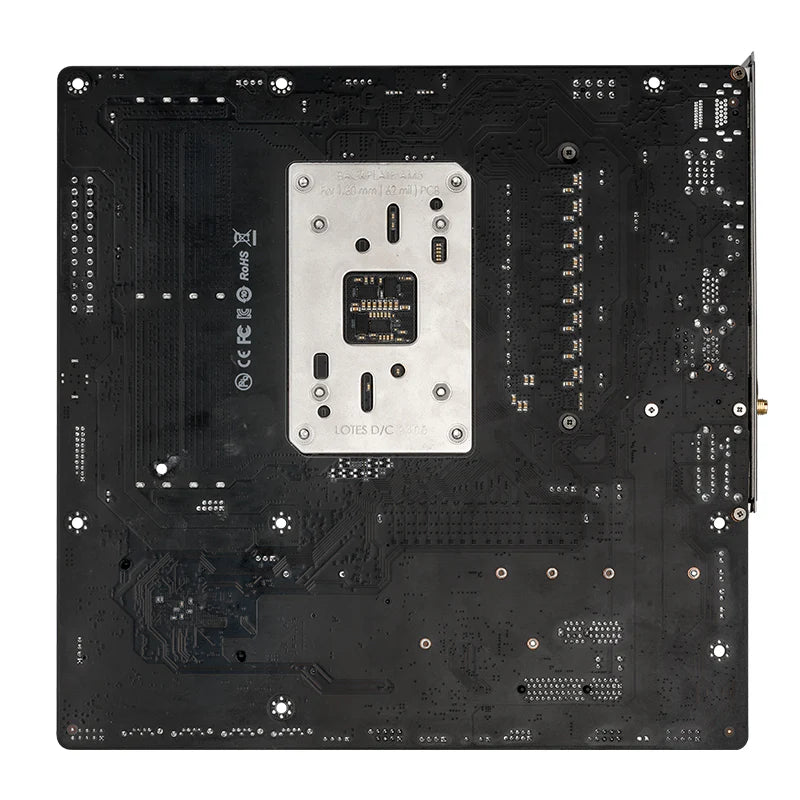

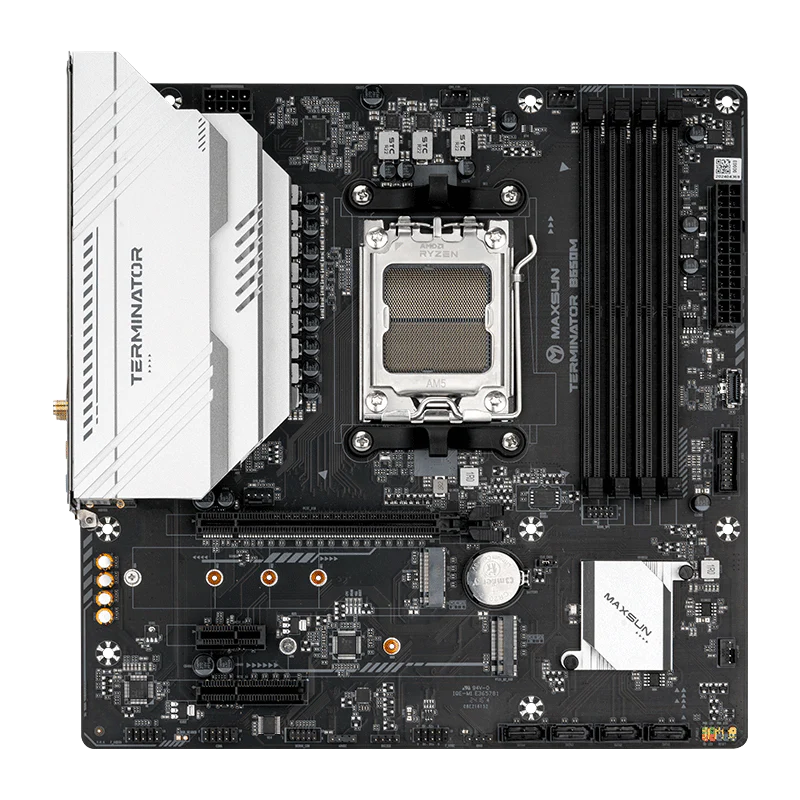

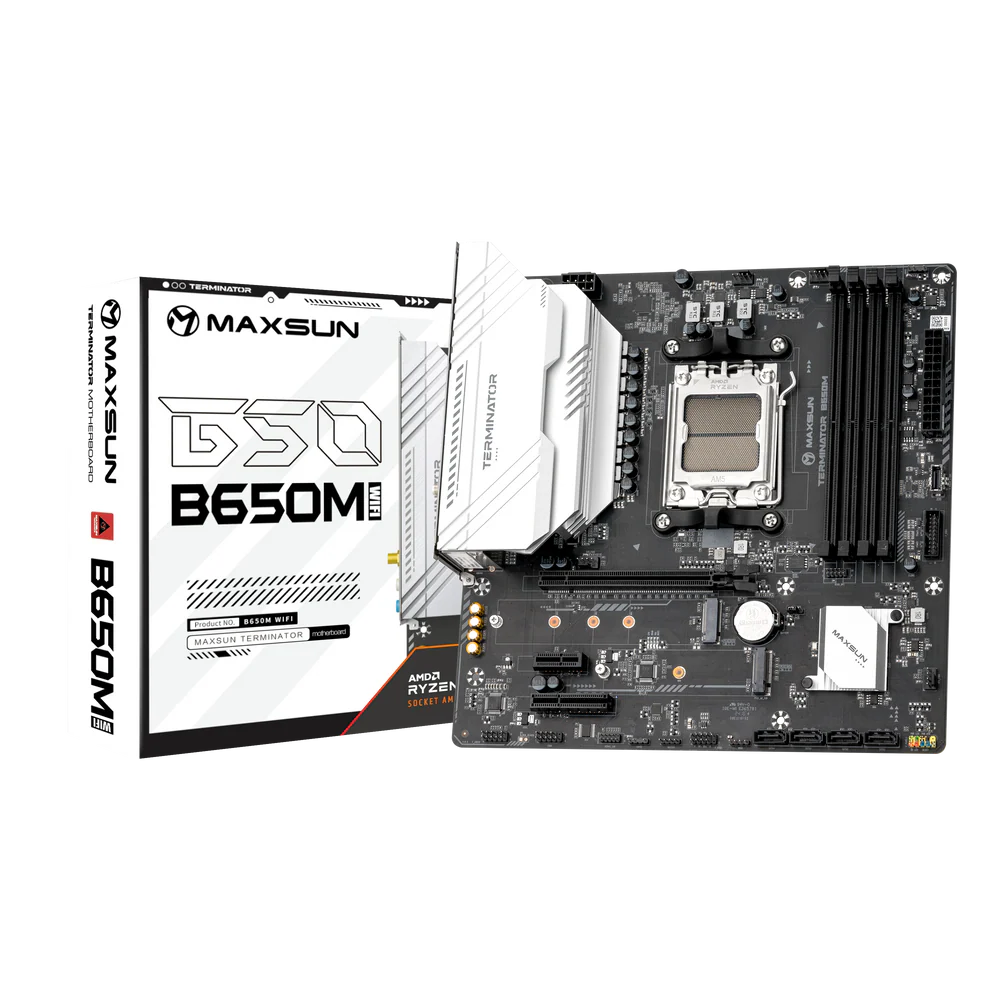

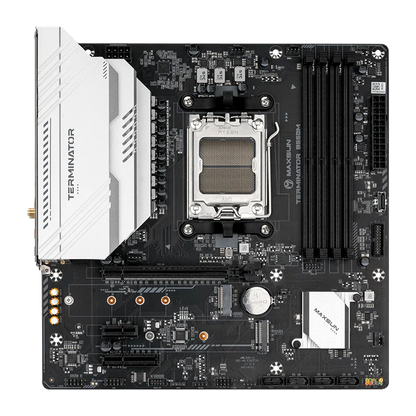

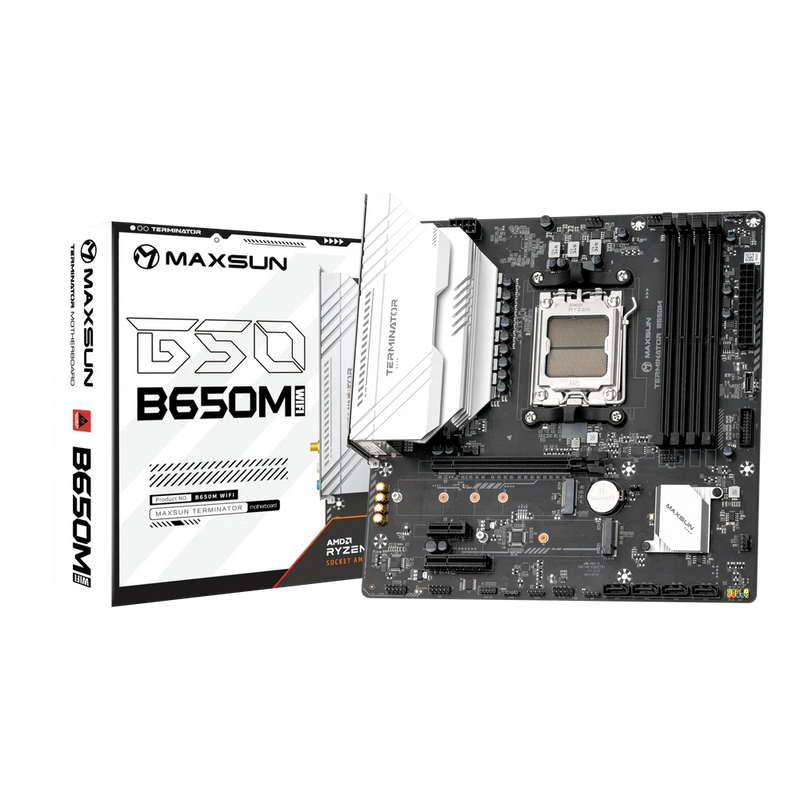

MAXSUN MS-Terminator B650M WIFI6 Motherboard

MAXSUN MS-Terminator B650M WIFI6 Motherboard

£159.99 GBP
£159.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

MS-Terminator B650M WIFI6

A strong Micro ATX AM5 board built around the B650 chipset, designed for Ryzen 7000, 8000, and 9000 builds with PCIe 5.0 graphics, DDR5, and plenty of storage and IO.

  • AMD B650 chipset with AM5 socket support for Ryzen 7000 8000 and 9000 series
  • 4 x DDR5 slots with dual channel support and wide EXPO overclock ranges
  • PCIe 5.0 x16 slot for the GPU plus PCIe 4.0 x4 and PCIe 3.0 x1
  • M.2 NVMe support plus 4 x SATA for additional drives
  • 2.5Gb LAN class networking and onboard Wi Fi
  • Rear Type C 10Gbps plus front Type C 10Gbps header
View Full Specifications

CPU and Chipset

  • AMD B650 chipset
  • Socket AMD AM5
  • CPU support Ryzen 7000 8000 9000 series
  • TDP up to 170W (per Maxsun spec)

Memory

  • 4 x DDR5 DIMM
  • Dual channel
  • Frequency support 4800 to 8000MHz (OC) as listed by Maxsun

Display Outputs

  • HDMI up to 4096x2160 at 30Hz
  • DisplayPort up to 4096x2160 at 60Hz

Expansion

  • PCIe 5.0 x16
  • PCIe 4.0 x4
  • PCIe 3.0 x1

Storage

  • M.2 slot supports 2280/22110 PCIe x4/x2 channel SSD
  • 4 x SATA 3.0 ports

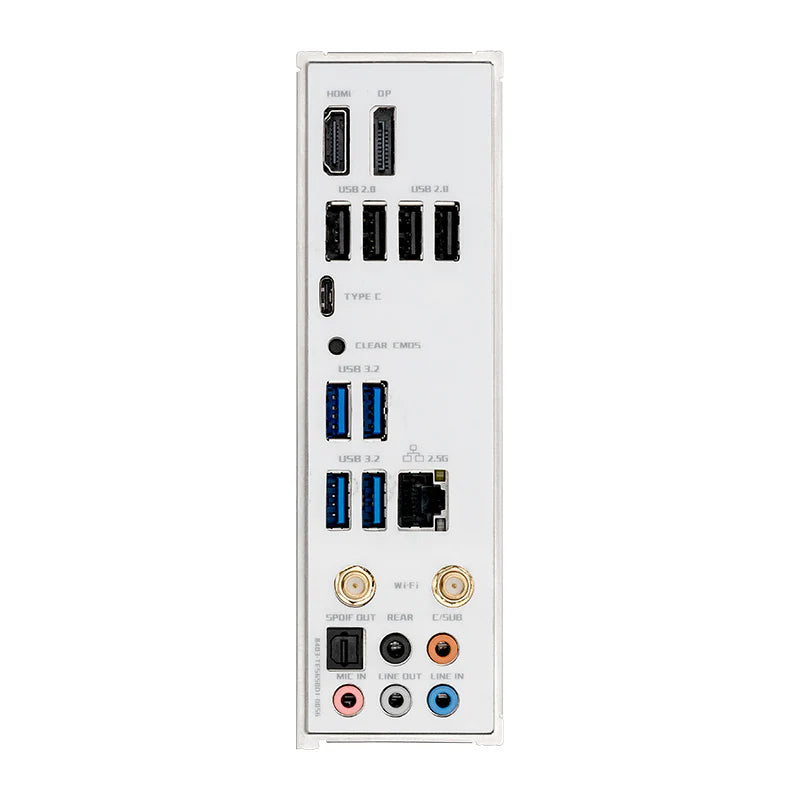

USB

  • Rear 4 x USB 3.2 Gen1
  • Rear 4 x USB 2.0
  • Rear USB Type C 10Gbps
  • Front USB Type C 10Gbps header
  • Internal USB headers per Maxsun spec

Networking and Audio

  • Realtek RTL8125BG NIC
  • Realtek ALC897 audio codec

Operating System

  • Windows 11 64 bit
  • Windows 10 64 bit
