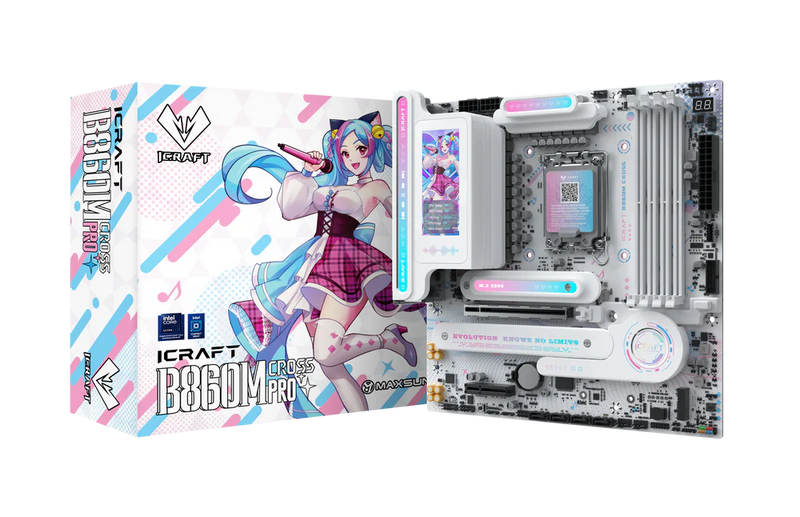

MAXSUN MS-iCraft B860M CROSS PRO Motherboard
MAXSUN MS-iCraft B860M CROSS PRO Motherboard
Regular price
£159.99 GBP
Regular price
Sale price
£159.99 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

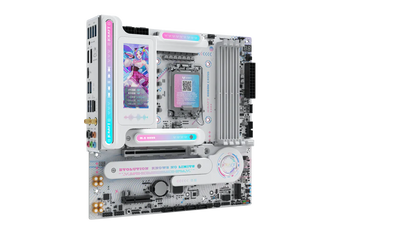

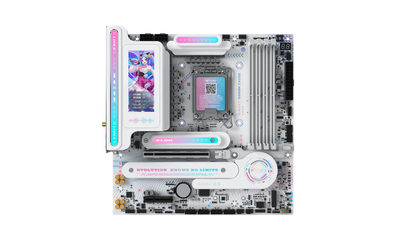

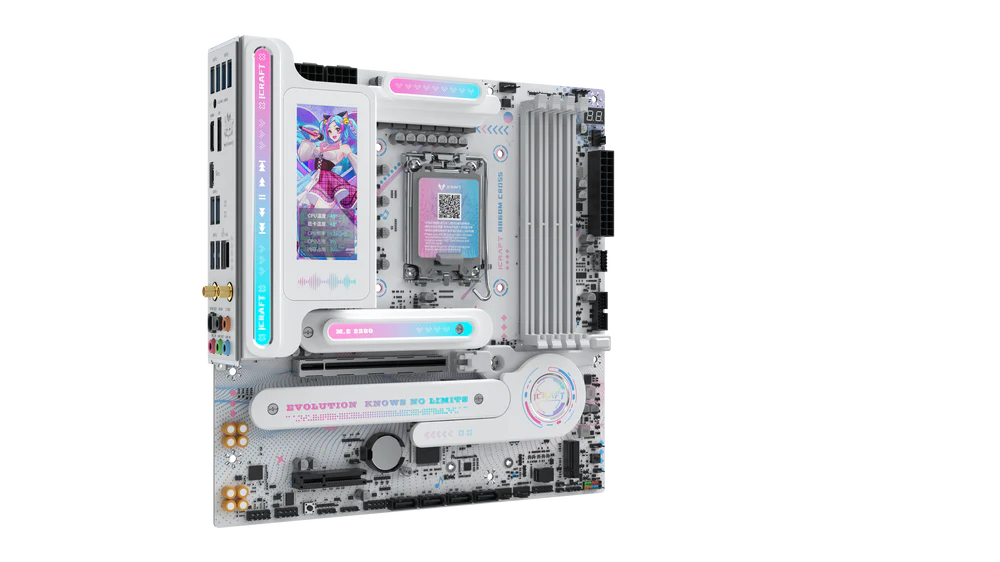

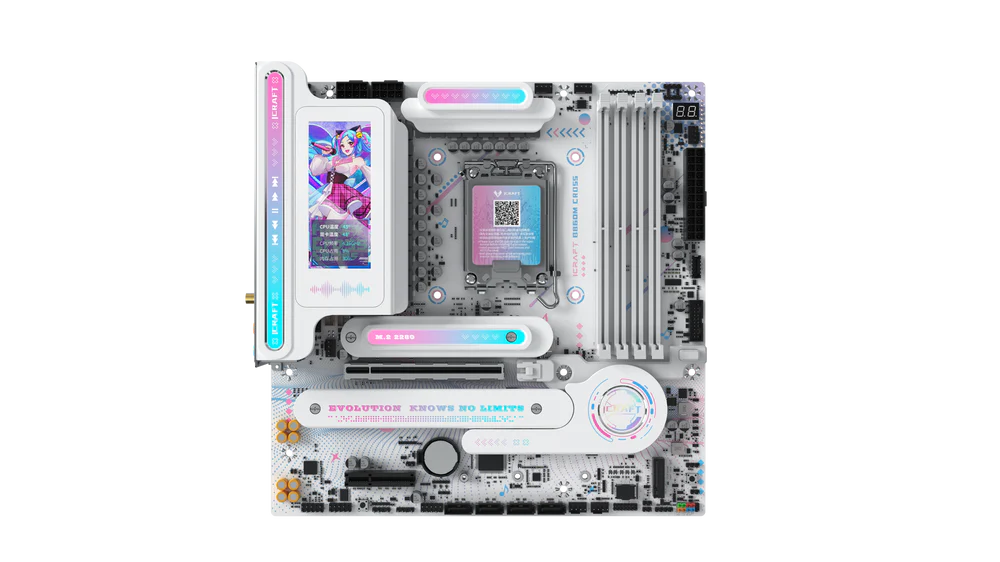

MS-iCraft B860M CROSS PRO
A premium M ATX B860 platform for Intel Core Ultra builds, focused on DDR5 tuning, PCIe 5.0 graphics support, and modern IO in a compact layout.
- Intel B860 chipset with LGA1851 socket for Intel Core Ultra processors
- 4 x DDR5 slots up to 192GB with XMP up to 9066MHz (OC)
- PCIe 5.0 x16 for the GPU plus PCIe 4.0 x4 expansion
- 3 x M.2 including PCIe 5.0 plus 4 x SATA 6Gb/s
- 5Gb Ethernet plus Wi Fi 6E and Bluetooth 5.3
- Rear USB4 40G plus front USB C 20G and 8 x USB 10G Type A
View Full Specifications
Form Factor
- Micro ATX 245 x 245mm
CPU and Chipset
- Socket Intel LGA1851
- Chipset Intel B860
- CPU support Intel Core Ultra processors
Memory
- 4 x DDR5 DIMM up to 192GB
- Dual channel
- XMP support up to 9066MHz (OC)
Display Outputs
- HDMI 2.0 up to 4K at 60Hz
- DisplayPort 1.4 up to 4K at 120Hz
Expansion Slots
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x4
Storage
- 1 x M.2 PCIe 5.0 x4/x2
- 2 x M.2 PCIe 4.0 x4/x2
- 4 x SATA 6Gb/s
Networking
- Realtek RTL8126 5Gb Ethernet
- Intel AX211 Wi Fi 6E and Bluetooth 5.3

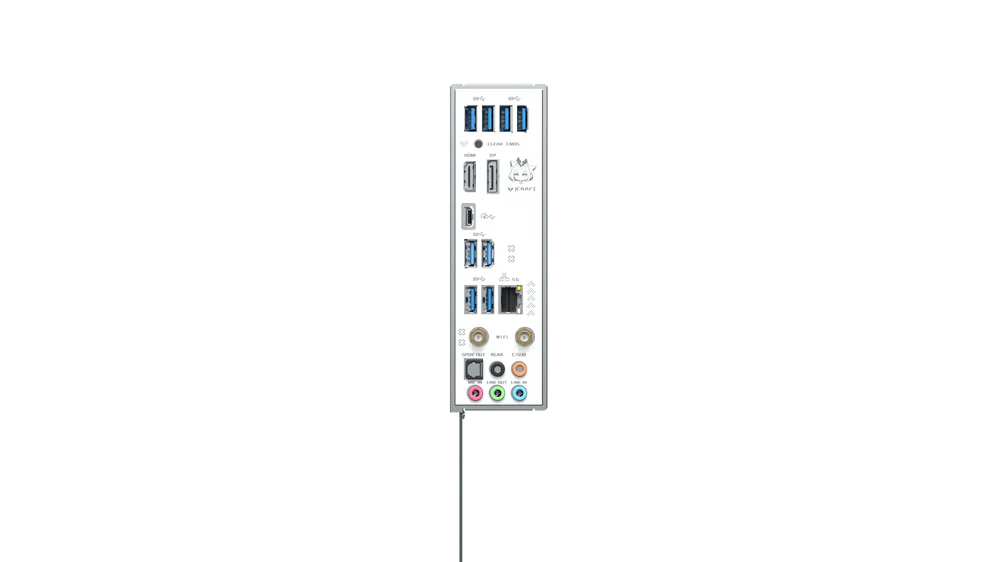

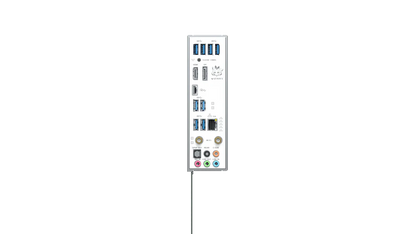

USB
- Rear 1 x USB4 40G up to 15W
- Rear 8 x USB 10G Type A
- Front USB C 20G header
- Additional internal USB headers as per Maxsun spec
Audio
- Realtek ALC897 audio
