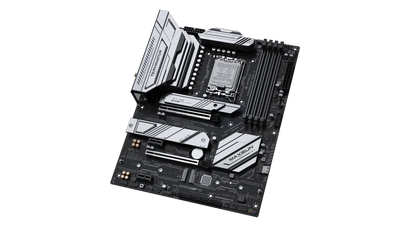

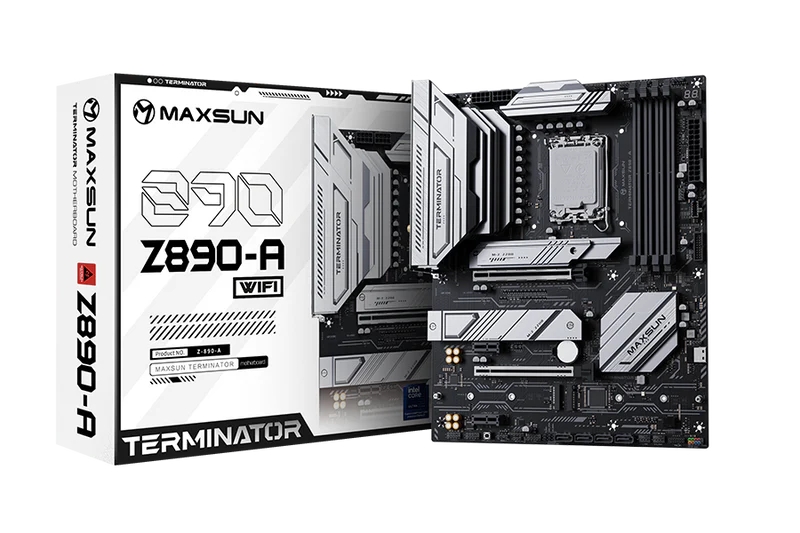

MAXSUN MS-Terminator Z890-A WIFI Motherboard
MAXSUN MS-Terminator Z890-A WIFI Motherboard
Regular price
£229.99 GBP
Regular price
Sale price
£229.99 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

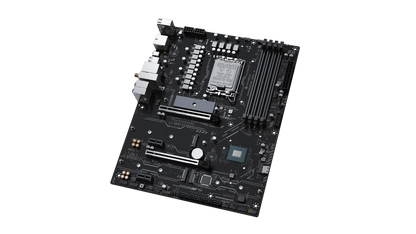

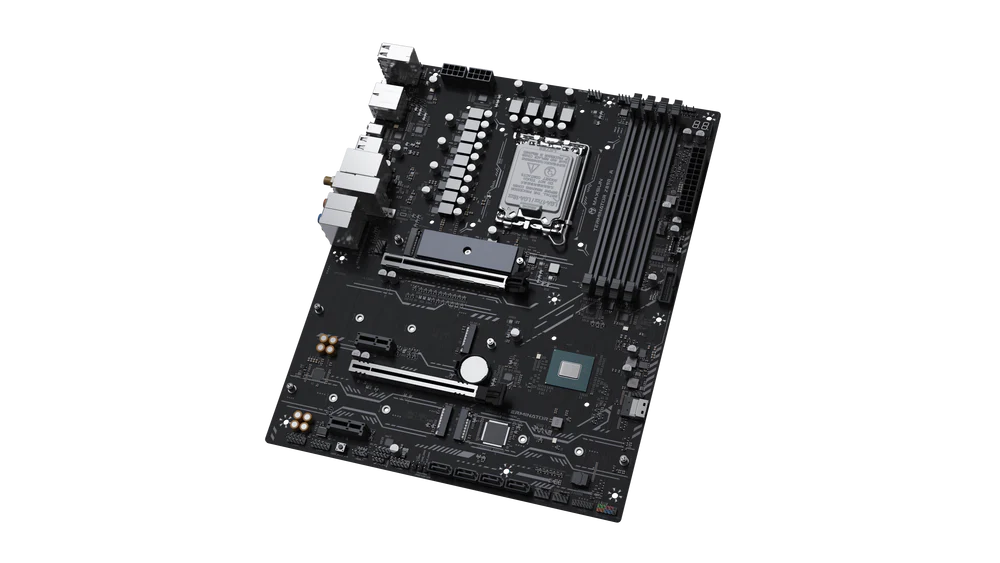

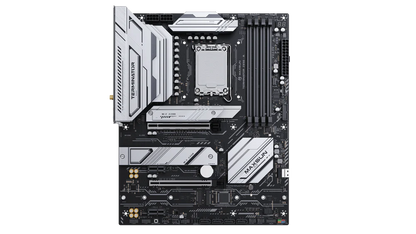

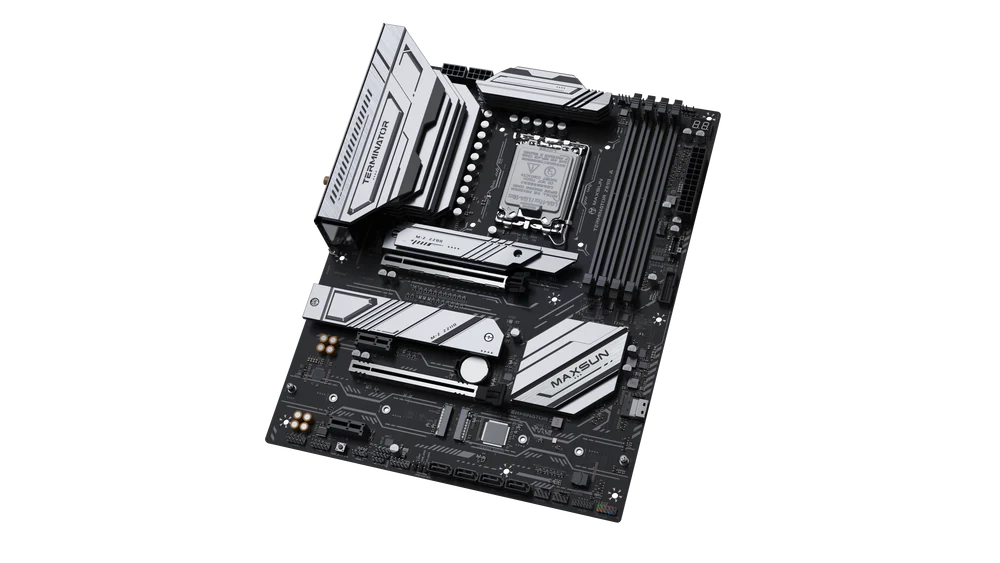

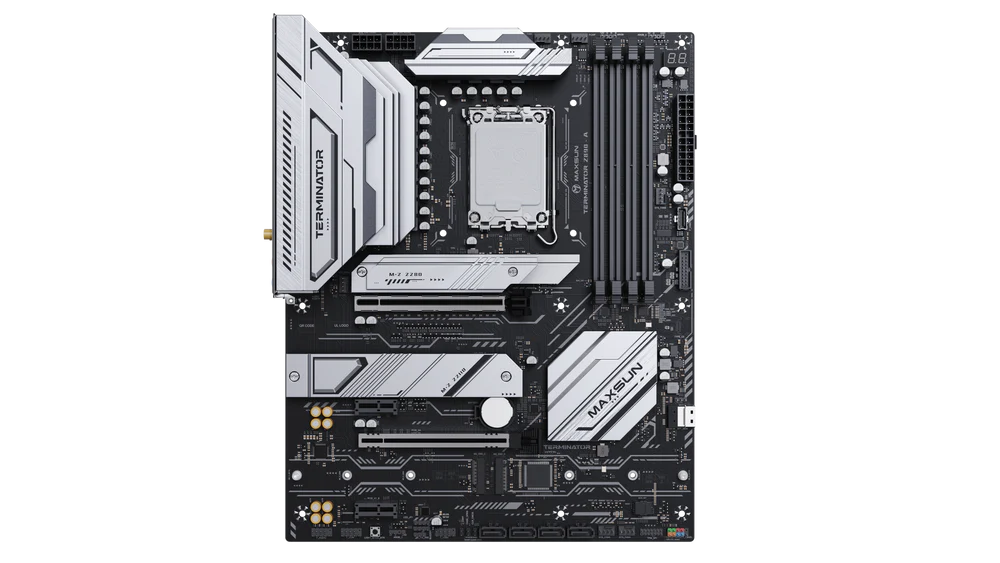

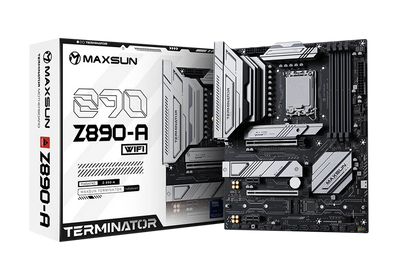

MS-Terminator Z890-A WIFI
A high performance ATX Z890 motherboard for Intel Core Ultra builds, with four DDR5 slots, PCIe 5.0 graphics support, and fast storage plus Wi Fi.
- Intel Z890 chipset with LGA1851 socket for Intel Core Ultra processors
- 4 x DDR5 slots up to 256GB with XMP tuning up to 8800MHz (OC)
- PCIe 5.0 x16 graphics slot plus additional PCIe expansion
- 4 x M.2 including PCIe 5.0 plus SATA and SFF 8654 storage support
- 2.5Gb Ethernet plus Wi Fi 6 and Bluetooth 5.2
- USB 40G Type C on the rear plus front USB 20G Type C header
View Full Specifications
Form Factor
- ATX 305 x 245mm
CPU and Chipset
- Socket Intel LGA1851
- Chipset Intel Z890
- CPU support Intel Core Ultra processors
Memory
- 4 x DDR5 DIMM up to 256GB
- Dual channel
- XMP support up to 8800MHz (OC)
Display Outputs
- HDMI 2.0 up to 4K at 60Hz
- DisplayPort up to 4K at 120Hz
Expansion Slots
- 1 x PCIe 5.0 x16 with bifurcation options
- 1 x PCIe x16 physical supporting PCIe 4.0 x4
- 2 x PCIe x1 supporting PCIe 4.0 x1
Storage
- 1 x M.2 PCIe 5.0 x4/x2
- 3 x M.2 PCIe 4.0 x4/x2
- 4 x SATA 6Gb/s
- 1 x SFF 8654 4i supporting PCIe or SATA breakout
Networking
- Realtek RTL8125D 2.5Gb Ethernet
- Intel AX201 Wi Fi 6 and Bluetooth 5.2

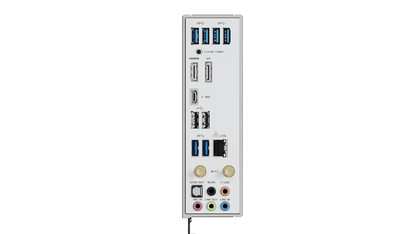

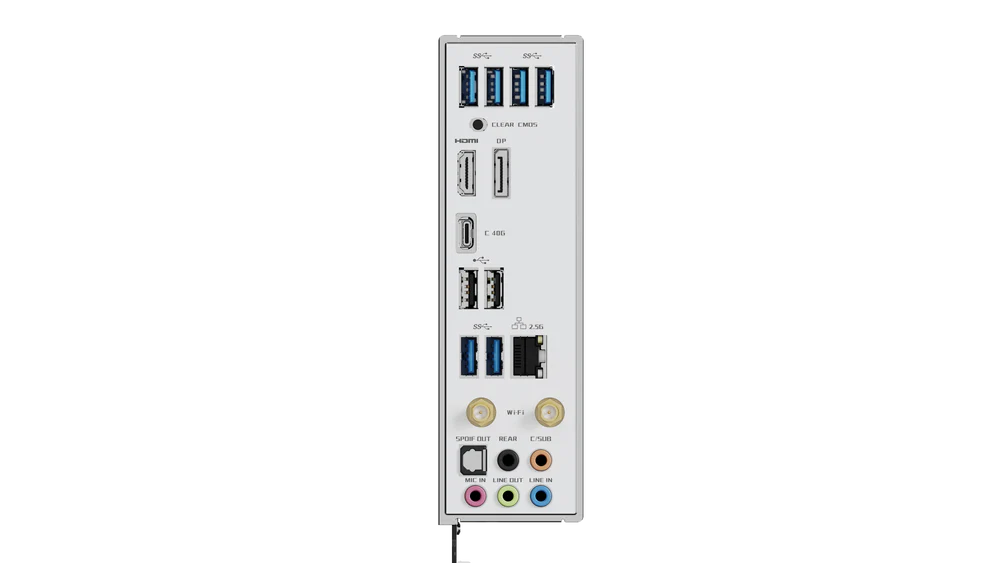

USB
- Rear 1 x USB 40G Type C
- Rear 2 x USB 10G Type A
- Rear 4 x USB 5G Type A
- Rear 2 x USB 2.0 Type A
- Front USB 20G Type C header
- Additional internal USB headers
Audio and Features
- Realtek ALC897 audio
- RGB lighting support
- CLR CMOS button
- Resizable Bar support
